Spa Bath Pump Leak Identified in Richmond
Completed Job Summary
Water leakage affecting a residential property in Richmond was traced to the spa bath system after moisture was observed near internal ceiling fittings. An on-site investigation was performed, access was created to inspect the spa bath components, and the leak source was confirmed as the spa pump assembly.
3 February 2026
Kenny
Plumber
81216
This job record is derived from first-party technician notes and the Simpro job management
Customer report

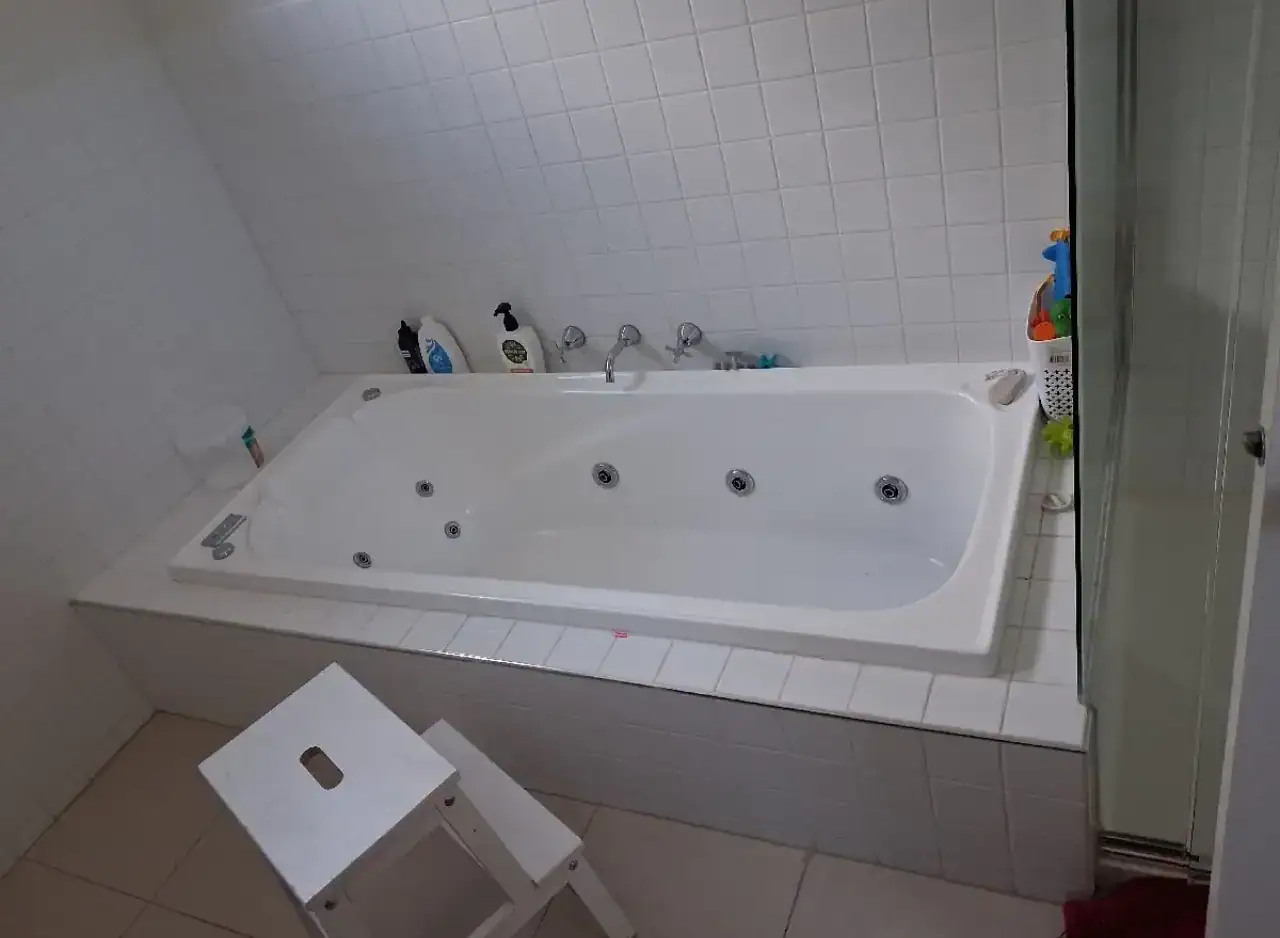

The homeowner reported water leaking from the spa bath area inside the residence. Moisture was observed travelling through the ceiling space and appearing around light fittings on the level below.
Images supplied by the client indicated a possible issue within the spa bath system. Based on the location of the water intrusion and the proximity to the spa installation, the spa bath pump and surrounding plumbing components were suspected as the likely source requiring inspection.
Diagnosis & Technical Assessment

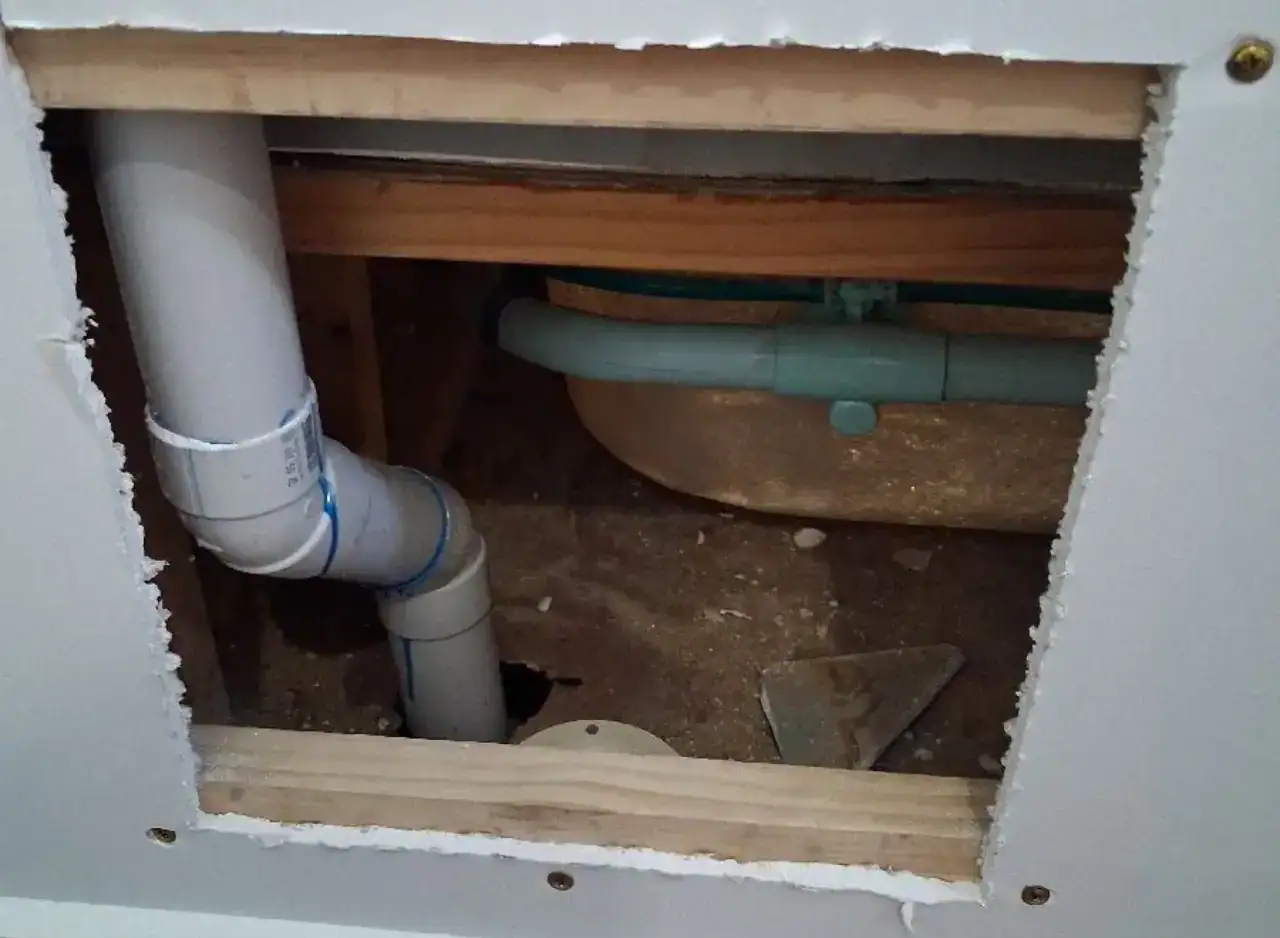

A plumbing investigation was undertaken to determine the origin of water entering the ceiling cavity beneath the spa bath installation. Access to the spa bath service area was established by cutting an inspection opening into the adjacent plasterboard wall to allow direct observation of the plumbing and pump assembly.

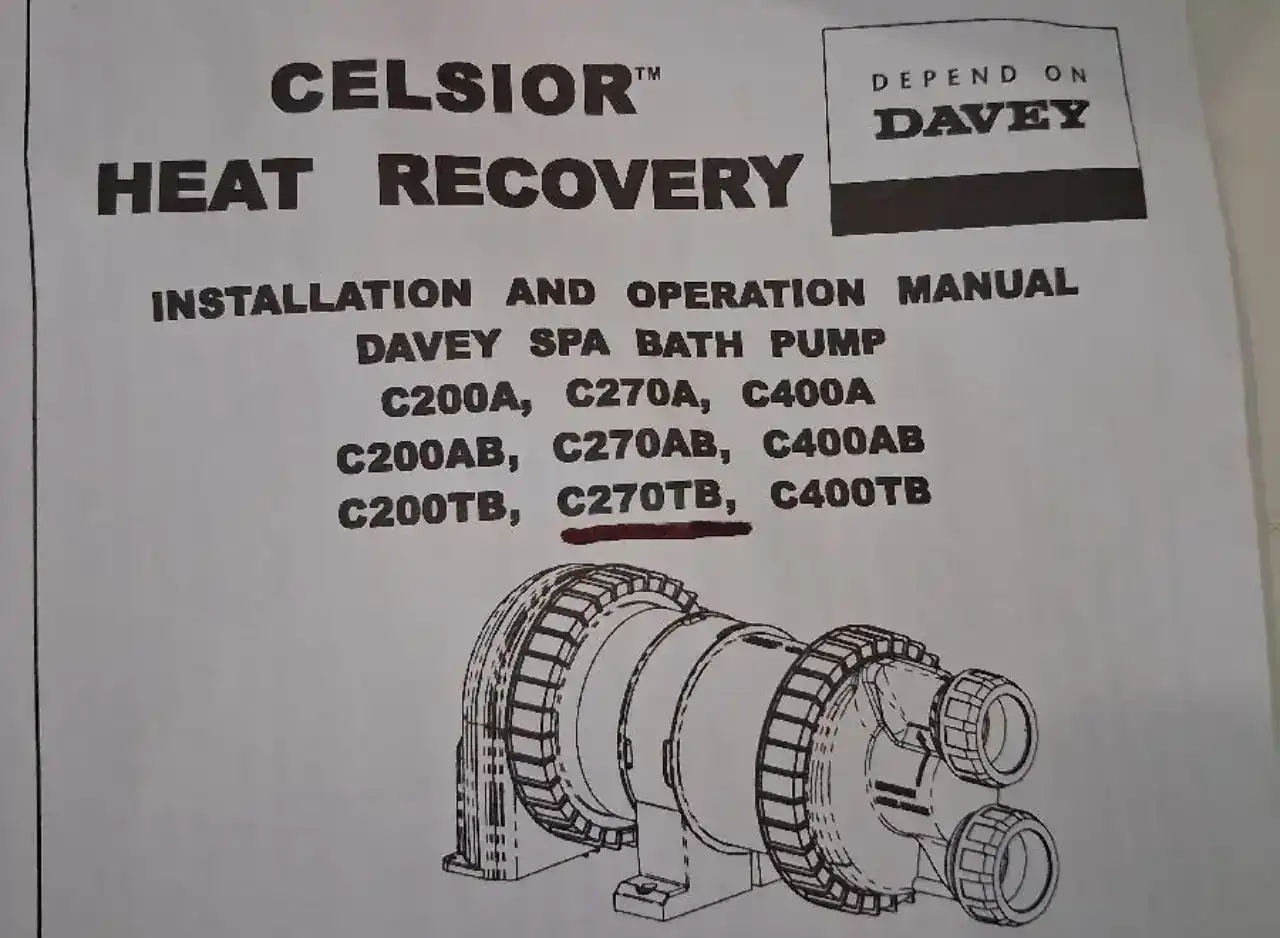

Visual inspection of the exposed components identified active moisture and water staining around the spa pump assembly. The installed pump was identified as a Davey Celsior Heat Recovery spa bath pump, referenced using the product information available on the on-site user manual.
During observation of the system in operation, water leakage was observed from the pump housing. The surrounding plumbing components were inspected to determine whether the leak originated from other sources within the spa bath system. The PVC waste pipework and water supply plumbing connections located within the inspected area showed no evidence of leakage.
Based on the location of the moisture, the visible water discharge during operation, and the absence of leaks in the surrounding pipework, the pump unit itself was identified as the source of the water leak.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Solutions delivered
Following confirmation of the leak source, the findings were communicated to the homeowner. The spa bath pump assembly was identified as the component responsible for the water escape within the system.
The installed pump showed signs of internal leakage from the pump housing during operation. Considering the age of the unit and the nature of the internal failure, replacement of the spa bath pump was recommended as the appropriate course of action.
Replacing the pump assembly was determined to provide a more reliable long-term outcome than attempting internal repair of the existing unit. Internal component failures within spa pumps can affect operational reliability and increase the risk of continued leakage if the assembly remains in service.
Options for pump replacement and subsequent rectification works were presented to the customer following the investigation.
Tools, Parts & Systems Used
- Davey Celsior Heat Recovery spa bath pump
- Spa bath pump assembly
- PVC waste pipework
- Water supply plumbing connections
Outcome & Results
The investigation confirmed that the water leak affecting the ceiling below originated from the spa bath pump assembly. Active leakage from the pump housing was observed during system operation.
Identification of the exact source of the leak allowed the plumbing system and surrounding pipework to be ruled out as contributing factors. Replacement of the spa bath pump was recommended to restore reliable operation of the spa bath system and eliminate the leak.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Repair vs Replacement
Spa bath pump failures can originate from internal seal wear, housing deterioration, or motor-related component failure. When leakage occurs from within the pump body rather than external fittings, the fault typically indicates deterioration of internal pump components.
In cases where the pump housing itself leaks during operation, replacement of the pump assembly is generally the preferred solution. Internal repairs can be unreliable where multiple internal components have experienced wear or failure.
Replacing the pump restores the integrity of the spa circulation system and reduces the likelihood of recurring leakage or operational instability.
