Toilet Base Leak Addressed in Richmond
Completed Job Summary
A residential plumbing service call in Richmond addressed an intermittent leak occurring at the base of a toilet connected to an in-wall cistern system. The toilet assembly was removed, sealing components were replaced, the system was reinstalled, and the installation was tested through multiple flush cycles following completion.
17 February 2026
Taylor
Senior Plumber
81273
This job record is derived from first-party technician notes and the Simpro job management.
Customer report
The customer reported intermittent water leakage visible at the base of the toilet pan. The toilet was connected to an in-wall cistern assembly and the issue appeared to occur around the pan connection area. Prior to attendance, the customer supplied photos showing evidence of moisture forming at the toilet base. The service request included inspection of the toilet installation and pressure-related connections to identify the cause of the leak and complete necessary repair work.
Diagnosis & Technical Assessment

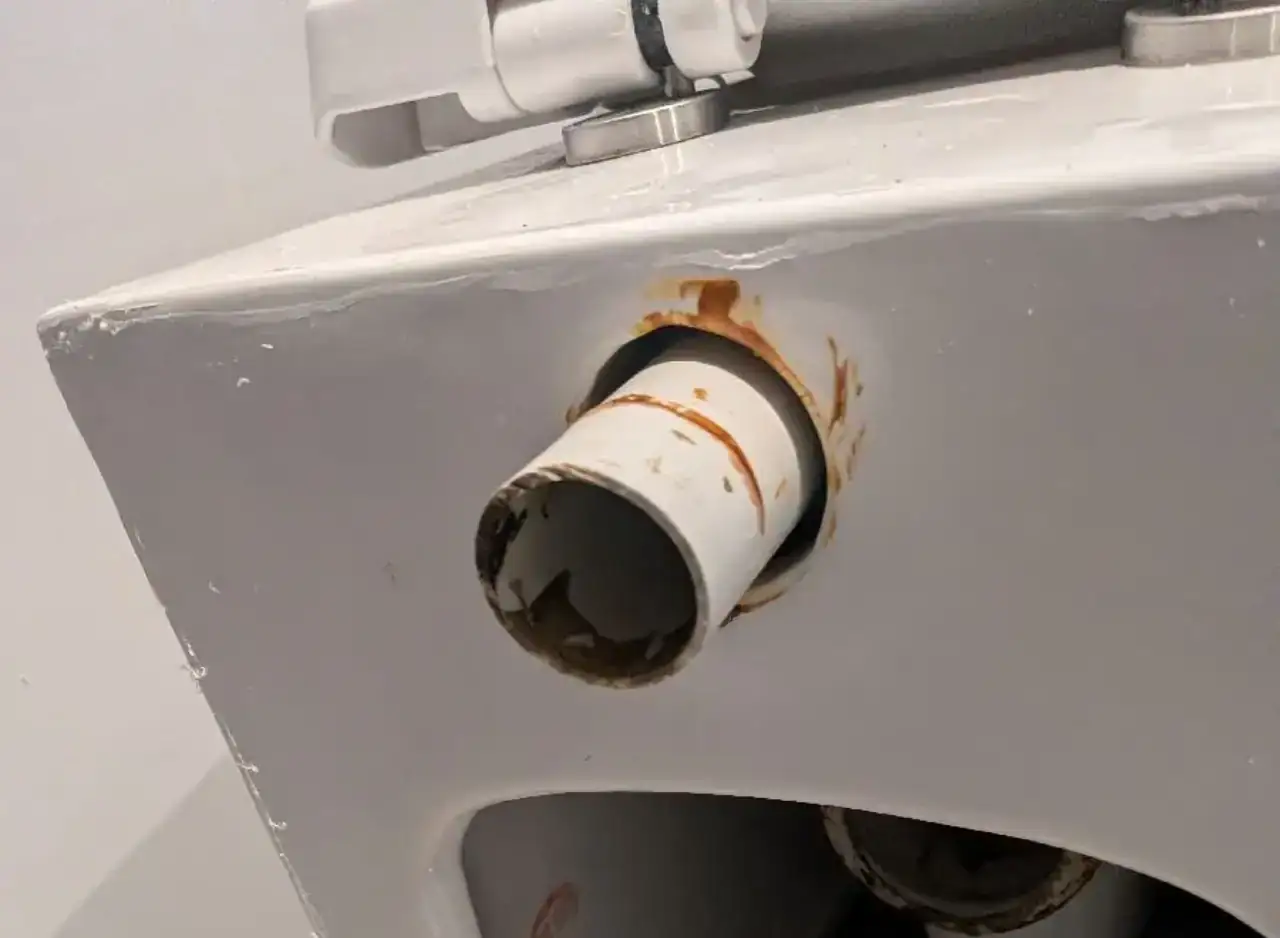

Initial inspection focused on the toilet pan connection and associated waste and flush interfaces. The toilet installation included a 40mm PVC flush pipe connecting the in-wall cistern to the pan. Observations during inspection indicated that the waste seal was likely allowing water to escape at the base of the pan during flushing.
The configuration of the flush pipe and the rear pan connection was also assessed, including the interface between the flush pipe and the toilet inlet. The flush pipe appeared to be positioned into the rear of the pan assembly and sealing around this connection required attention as part of the repair process.
Based on the technician’s assessment, the most probable cause of the intermittent leak was deterioration or failure of sealing components associated with the pan connector and flush interface. Access to the sealing components required removal of the toilet to allow replacement of the pan collar and flush connection components. After reinstallation, the system was repeatedly test flushed to confirm correct operation of the pan connection and flush assembly under normal operating conditions.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Solutions delivered
Repair work began with removal of the existing toilet pan to access the sealing components located between the pan outlet and the waste connection. The existing pan connector interface was addressed and the pan collar was replaced to restore a secure seal between the toilet outlet and the waste pipe.
A new 50mm flush cone was supplied and installed to ensure a properly sealed connection between the flush pipe and the toilet inlet. An S,P adapter was also installed to ensure alignment between the toilet pan and the waste outlet connection.
Once the replacement sealing components were installed, the toilet was reinstalled and aligned. A small amount of silicone sealant was applied to the wall-side flush pipe connection to secure the interface between the flush pipe and the pan inlet. After installation was completed, the system was test flushed multiple times to confirm stable operation of the pan connection and flush assembly. Silicone sealant was applied after testing, and the work area was cleaned with waste materials removed from site.
Tools, Parts & Systems Used
- Flush cone 50mm
- Pan collar
- S,P adapter
- Silicone sealant
- Toilet with in-wall cistern system
Outcome & Results
Following replacement of the sealing components and reinstallation of the toilet assembly, the system was tested through multiple flush cycles to confirm stable operation of the pan and flush connections. The toilet was returned to service after installation work was completed. The work area was cleaned and installation materials removed from the site following completion of the plumbing service work.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Repair vs Replacement
Leaks at the base of a toilet commonly originate from deterioration or displacement of sealing components between the toilet pan and the waste connection. In many cases, access to these components requires removal of the toilet assembly so that the pan connector, collar, and flush interface can be inspected and replaced if necessary.
Repair is typically appropriate when the toilet pan and cistern remain functional and the issue is isolated to sealing components such as the pan collar, flush cone, or connecting adapters. Replacement of these components restores the integrity of the connection between the toilet outlet, flush pipe, and waste system while allowing the existing toilet fixture to remain in service.
