Water Pressure and Plumbing Components Addressed in Kew
Completed Job Summary
Water-pressure concerns and a leaking, broken shower tap prompted plumbing work at a property in Kew, with additional issues identified across the water service, toilet and kitchen mixer. A new isolation valve, meter fittings, and PRV were installed; bathroom tap components, a toilet outlet valve, and mixer O-rings were replaced; and all completed work was tested.
1 July 2026
Jarryd
Plumber
81899
This job record is derived from first-party technician notes and the Simpro job management.
Customer report
The plumbing attendance in Kew was initially arranged to check the property’s water pressure and to investigate a leaking, broken shower tap. The work subsequently covered several related plumbing issues and components around the property, including the existing water meter arrangement, the downstairs bathroom tapware, the downstairs toilet, and the kitchen mixer. The toilet was leaking into the bowl, while the kitchen mixer had perished O-rings associated with pressure.
Diagnosis & Technical Assessment
The plumbing assessment covered the property’s water service and several individual fixtures. The existing water-meter setup presented complexities that affected how the water line could be isolated. This led to the use of a live-cut installation method for a new 20 mm B-Press ball valve.
Pressure control formed part of the completed scope. A new PRV was installed, with the associated scope specifying a 20-mm boundary pressure-limiting valve and a 500-kPa pressure-reducing valve. The scope referenced installation in accordance with AS3500 Part 1.
Separate fixture conditions were also addressed. The downstairs toilet was leaking into the bowl, supporting replacement of its outlet valve. At the kitchen mixer, the O-rings were found to be perished and were attributed to pressure. Bathroom tap components were also included in the completed work, recorded by the technician as new quarter-turn taps and in the associated scope as replacement hot and cold recessed wall tap tops.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Solutions delivered
The existing meter configuration required a new isolation arrangement, so a 20 mm B-Press ball valve was live-cut into the water line. New meter nut-and-tail fittings were installed on both sides of the meter, together with a new PRV for pressure control.

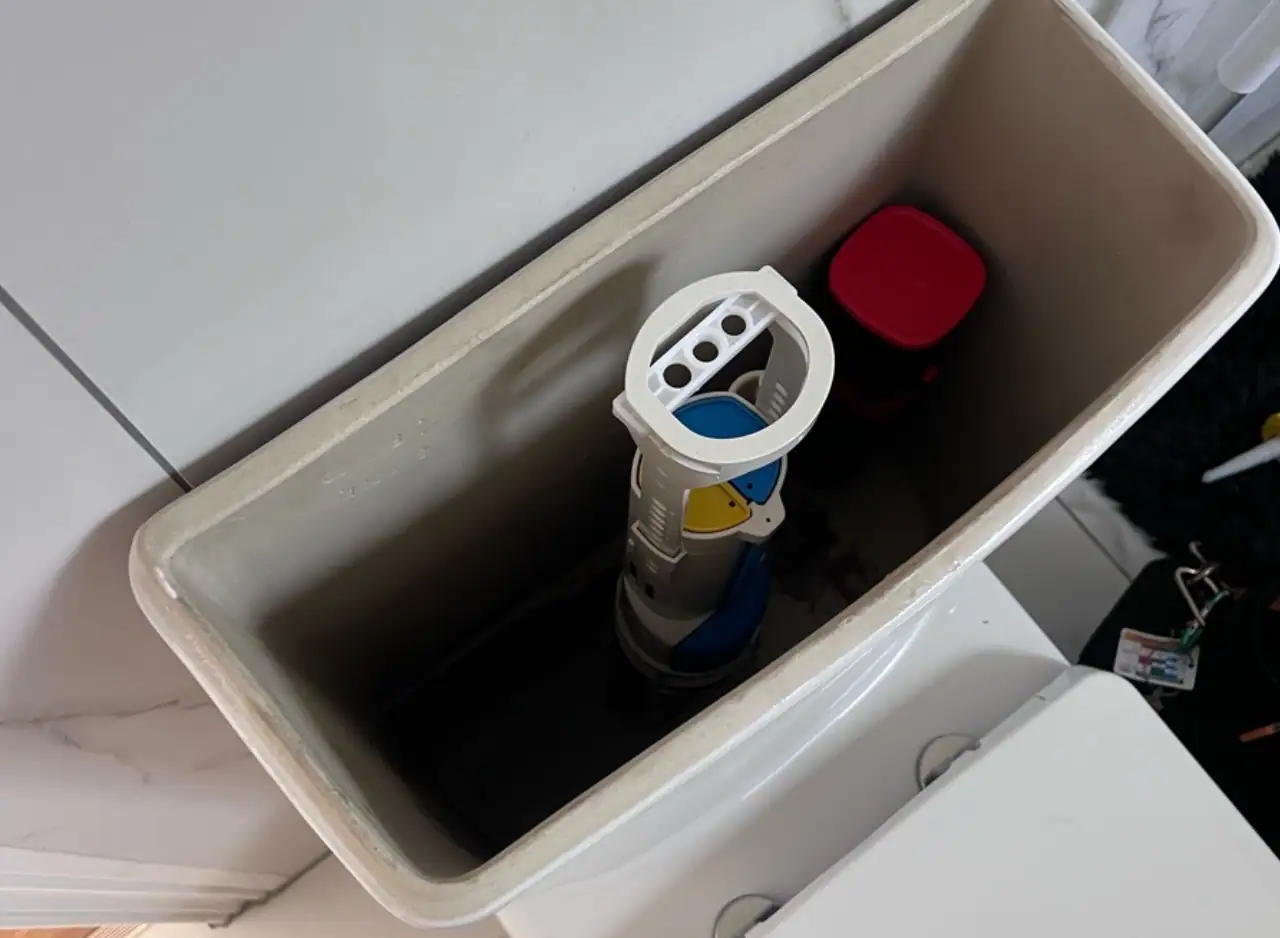

The components of the downstairs bathroom tap were replaced as part of the completed scope. The leaking toilet received a replacement outlet valve, addressing the component associated with water leaking into the bowl.
At the kitchen mixer, the perished O-rings were replaced after their condition was associated with pressure. The scope identifies two mixer-spout O-rings as part of this work.
These repairs combined water-service modifications with individual fixture-component replacement rather than treating the work as a single isolated tap issue. After installation and component replacement, the technician tested all completed work.
Tools, Parts & Systems Used
- 20 mm B-Press ball valve
- Meter nut/tail fittings
- PRV
- Quarter-turn/recessed tap components
- Toilet outlet valve
- Kitchen mixer O-rings
- B-Press and live-cut installation methods
Outcome & Results
The completed plumbing work addressed the water-service isolation and pressure-control arrangement together with the affected bathroom, toilet and kitchen components. A new isolation valve, meter fittings, and PRV were installed; the downstairs bathroom tap components were replaced; the leaking toilet received a new outlet valve; and the kitchen mixer O-rings were renewed.
The technician recorded that all completed work was tested following the installations and component replacements.
All work was carried out in accordance with relevant Australian Standards and safety requirements.
Repair vs Replacement
Plumbing faults involving several fixtures can require different repair decisions across the same property. Serviceable seals or internal components may be replaced where the surrounding fixture remains suitable, while valves can be replaced when the affected component itself is responsible for the problem.
In this Kew job, the kitchen mixer was retained while its perished O-rings were replaced. The toilet was also retained while its leaking outlet valve was replaced. The water service required the installation of new isolation and pressure-control components because the work also involved the existing meter and pressure arrangement.
