Under-Sink Water Filter Leak Identified in Ripponlea
Completed Job Summary
A leaking three-stage water filtration system beneath a kitchen sink was investigated and removed at a Ripponlea property. Inspection identified a permanently deformed O-ring in the centre of the activated carbon filter housing. The filtration system was then removed, and the mains water, kitchen mixer, and washing machine connections were reinstated.
22 July 2026
Jessie
Plumber
82021
This job record is derived from first-party technician notes and the Simpro job management.
Customer report

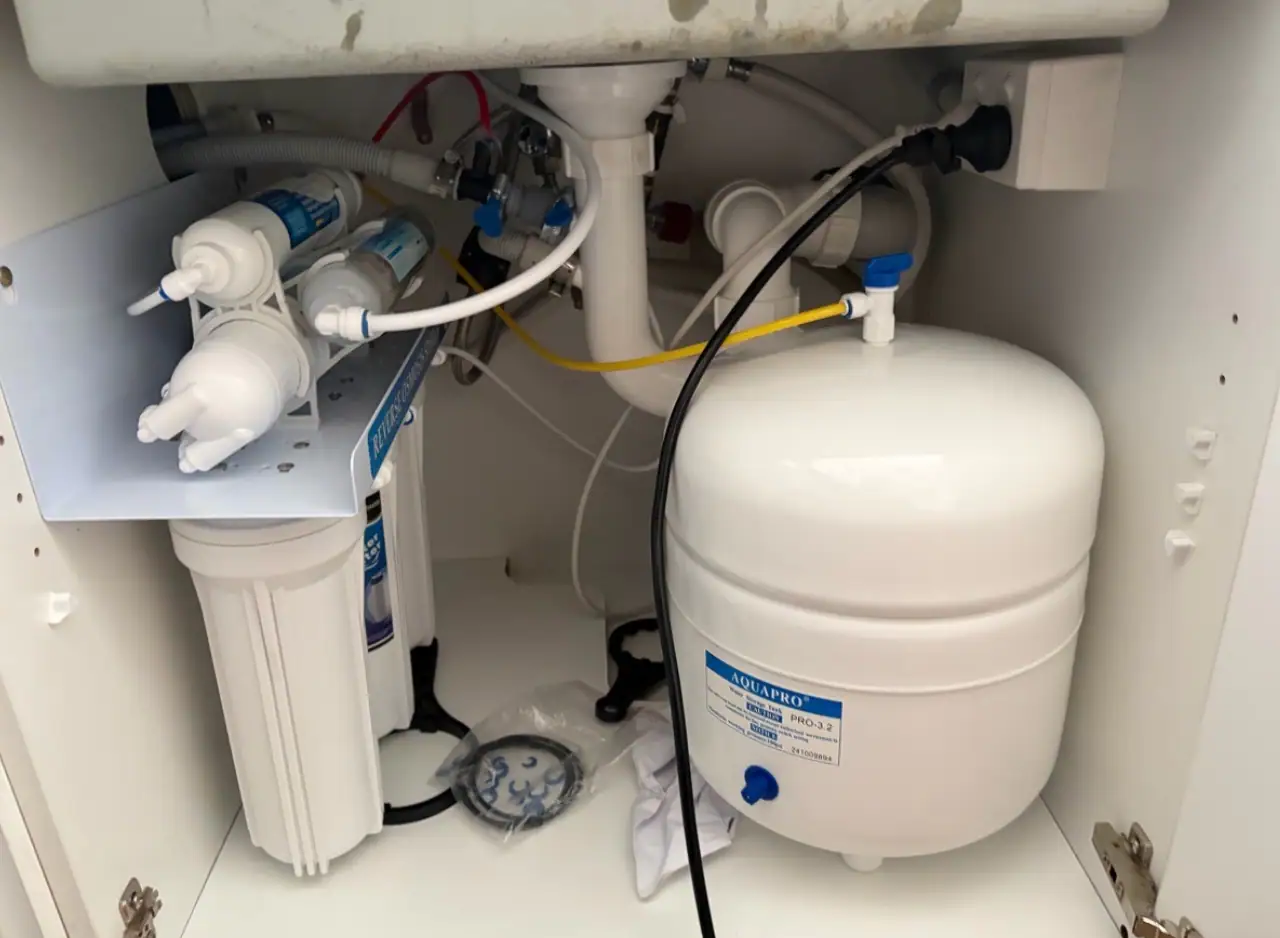

The customer requested an investigation of a water leak from an existing three-stage filtration system installed beneath the kitchen cabinetry. The filtration system had previously been installed by another plumber, and the reported leak had occurred at a connection associated with one of the three filters. The customer also requested removal of the filtration system and a report describing the cause of the leak for insurance purposes.
Diagnosis & Technical Assessment

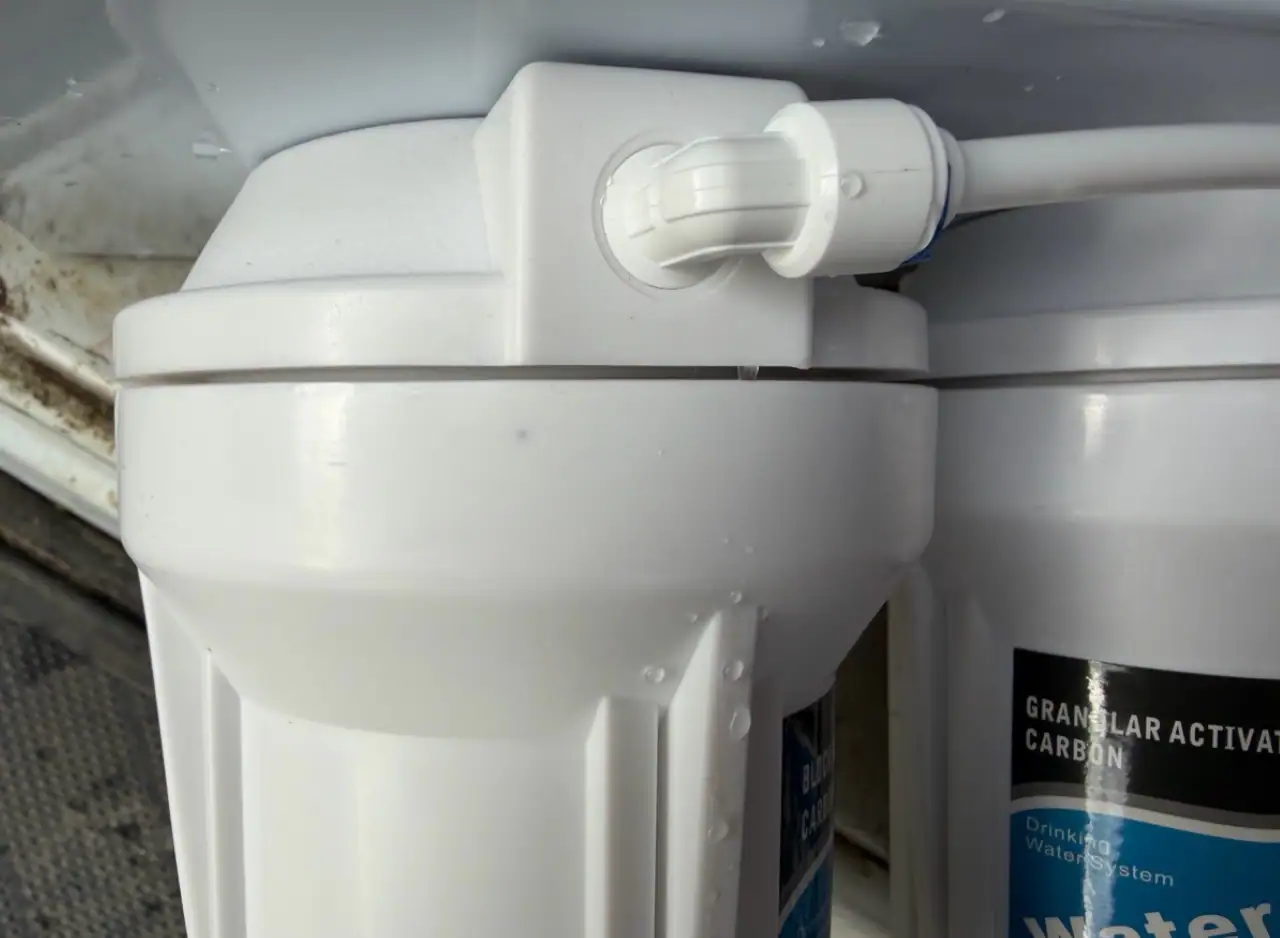

The three-stage filtration system was isolated, removed and fully disassembled so its components could be inspected. The leak source was identified at the centre filter housing containing the activated carbon filter.
Inspection found that the rubber O-ring sealing the activated carbon filter to the housing was significantly compressed and permanently deformed. This deformation had compromised the sealing surface, allowing water to bypass the O-ring and escape from the filter housing.
The physical condition of the O-ring was assessed as most likely resulting from excessive tightening during a previous installation or filter replacement. Because the installation had been completed by another plumber, the installation method and tightening torque could not be confirmed.
The mounting bracket supporting the filtration assembly was also found not to be securely fixed to the wall. The inspection report identified the resulting movement and vibration as a contributing factor likely to have accelerated the deterioration of the already compromised seal. The observed condition was assessed as consistent with mechanical seal failure rather than a manufacturing defect or damage to the filter housing itself.
All work was completed in accordance with the Victorian Building Authority (VBA) regulatory framework.
Solutions delivered
The customer had requested both an investigation into the source of the leak and the removal of the existing filtration system. After isolation, removal, and disassembly, the condition of the centre filter O-ring and mounting bracket was assessed; the filtration system was removed rather than reinstated.

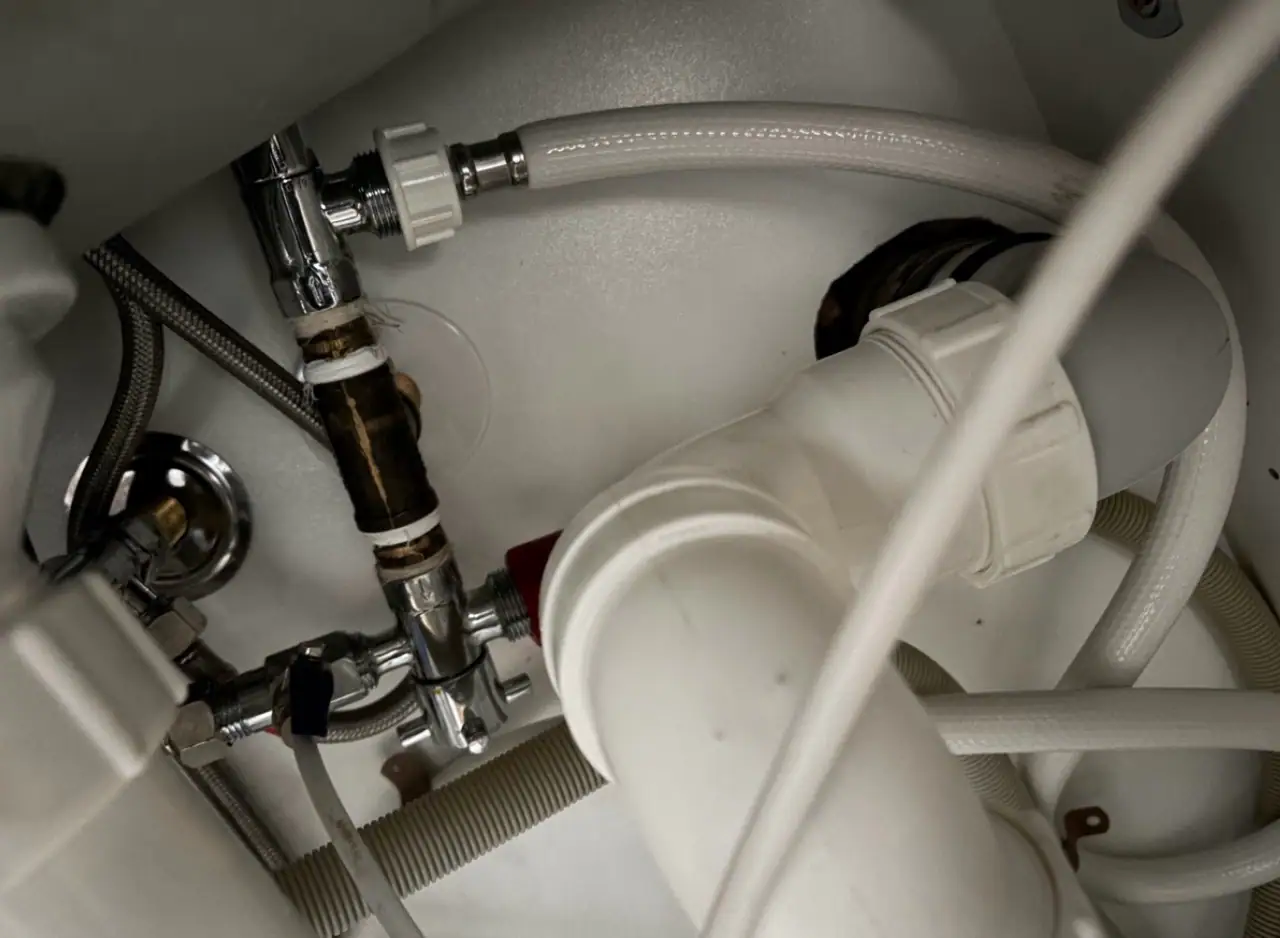

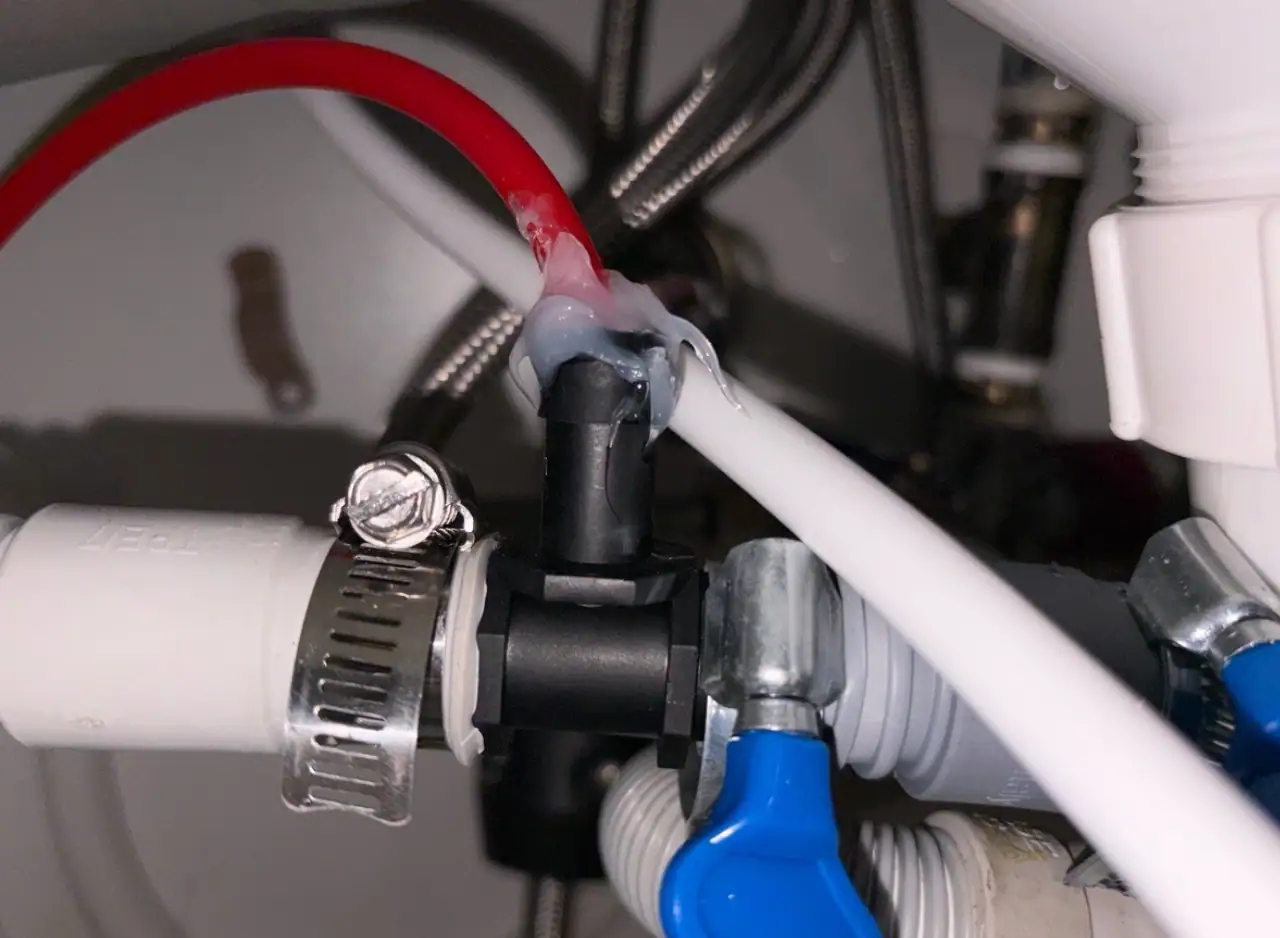

Existing filtration hoses and couplings were removed from beneath the kitchen sink. The mains water supply was then reconnected, along with the kitchen flick mixer connection and the washing machine outlet hose.
The completed work returned the kitchen plumbing to a mains-water configuration without the removed filtration assembly. The inspection findings were also documented in a report for the customer’s insurance requirements, including the identified O-ring failure, the most likely excessive-tightening mechanism and the inadequately secured mounting bracket as a contributing condition.
Tools, Parts & Systems Used
- Three-stage water filtration system
- Activated carbon filter housing
- Rubber O-ring
- Filtration hoses and couplings
- Kitchen flick mixer
- Washing machine water connection
Outcome & Results
The existing under-sink filtration system was removed, and the mains water supply was reinstated. The kitchen flick mixer and washing machine outlet hose were reconnected as part of the completed work.
Inspection identified failure of the centre activated carbon filter O-ring as the source of the leak, with the unsecured mounting bracket identified as a contributing factor. A report documenting the findings and conclusions was prepared for the customer’s insurance requirements.
All work was carried out in accordance with relevant Australian Standards and safety requirements.
Repair vs Replacement
A leaking filtration system may require component repair, seal replacement, or complete removal, depending on the system’s condition and the customer’s required scope. In this Ripponlea job, the customer had specifically requested the removal of the existing filtration system as well as the investigation of the leak.
Inspection established that the centre filter O-ring had permanently deformed and that the mounting assembly was inadequately secured. Rather than reinstating the filtration system, the assembly, hoses and couplings were removed, and the existing mains-water kitchen connections were restored. The diagnostic findings were retained separately in the insurance report.
